Problems of Parallel Resonance Involving Quality Factor MCQ’s

Read Time:2 Minute, 53 Second

This set of Network Theory Multiple Choice Questions & Answers (MCQs) focuses on “Problems of Parallel Resonance Involving Quality Factor”.

1. For the parallel resonant circuit given below, the value of the inductive and capacitive reactance is _________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q1

a) XL = 654.289 Ω; XC = 458.216 Ω
b) XL = 985.457 Ω; XC = 875.245 Ω
c) XL = 785.394 Ω; XC = 785.417 Ω
d) XL = 125.354 Ω; XC = 657.215 Ω

2. For the parallel resonant circuit given below, the current through the capacitor and inductor are _________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q1

a) IC = 10.892 mA; IL = 12.732 mA
b) IC = 12.732 mA; IL = 10.892 mA
c) IC = 10.892 mA; IL = 10.892 mA
d) IC = 12.732 mA; IL = 12.732 mA

3. For the parallel resonant circuit shown below, the value of the resonant frequency is _________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q1

a) 1.25 MHz
b) 2.5 MHz
c) 5 MHz
d) 1.5 MHz

4. For the parallel resonant circuit given below, the value of the equivalent impedance of the circuit is ________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q1

a) 56.48 kΩ
b) 78.58 kΩ
c) 89.12 kΩ
d) 26.35 kΩ

5. For the parallel resonant circuit given below, the cut-off frequencies are ____________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q1

a) ∆f1 = 2.389 MHz; ∆f2 = 441.124 MHz
b) ∆f1 = 1.256 MHz; ∆f2 = 1.244 MHz
c) ∆f1 = 5.658 MHz; ∆f2 = 6.282 MHz
d) ∆f1 = 3.656 MHz; ∆f2 = 8.596 MHz

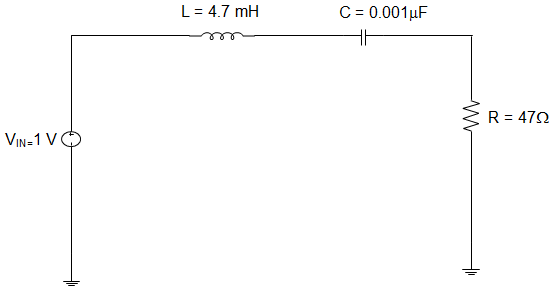

6. For the series resonant circuit given below, the value of the inductive and capacitive reactance is _________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q7

a) XL = 5.826 kΩ; XC = 5.826 kΩ
b) XL = 2.168 kΩ; XC = 2.168 kΩ
c) XL = 6.282 kΩ; XC = 6.282 kΩ
d) XL = 10.682 kΩ; XC = 10.682 kΩ

7. For the parallel resonant circuit, the bandwidth of the circuit is ____________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q1

a) ±6.25 kHz
b) ±8.56 kHz
c) ±10.35 kHz
d) ±6.37 kHz

8. For the series resonant circuit shown below, the value of the resonant frequency is _________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q7

a) 10.262 kHz
b) 44.631 kHz
c) 50.288 kHz
d) 73.412 kHz

9. For the series resonant circuit given below, the value of the equivalent impedance of the circuit is ________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q7

a) 55 Ω
b) 47 Ω
c) 64 Ω
d) 10 Ω

10. For the series circuit given below, the value of the voltage across the capacitor and inductor are _____________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q7

a) VC = 16.306 V; VL = 16.306 V
b) VC = 11.268 V; VL = 11.268 V
c) VC = 16.306 V; VL = 16.306 V
d) VC = 14.441 V; VL = 14.441 V

11. For a parallel RLC circuit, the incorrect statement among the following is _____________
a) The bandwidth of the circuit decreases if R is increased
b) The bandwidth of the circuit remains same if L is increased
c) At resonance, input impedance is a real quantity
d) At resonance, the magnitude of input impedance attains its minimum value

12. For the series resonant circuit given below, the value of the total current flowing through the circuit is ____________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q7

a) 7.521 mA
b) 6.327 mA
c) 2.168 mA
d) 9.136 mA

13. For the series resonant circuit given below, the value of the quality factor is ___________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q7

a) 35.156
b) 56.118
c) 50.294
d) 46.128

14. A circuit excited by voltage V has a resistance R which is in series with an inductor and capacitor, which are connected in parallel. The voltage across the resistor at the resonant frequency is ___________
a) 0
b) V2
c) V3
d) V

15. For the circuit given below, the nature of the circuit is ____________

network-theory-questions-answers-problems-parallel-resonance-involving-quality-factor-q7

a) Inductive
b) Capacitive
c) Resistive
d) Both inductive as well as capacitive
